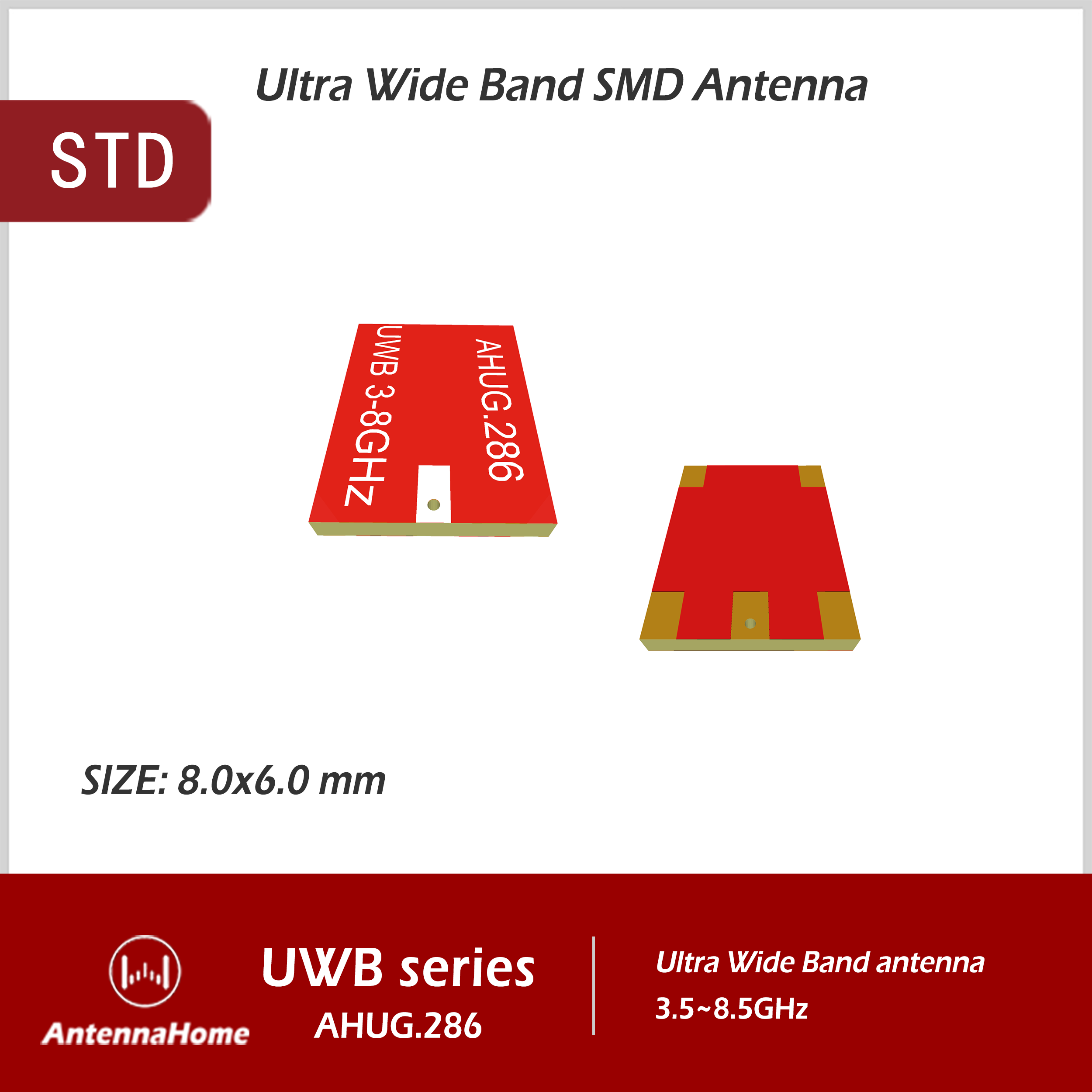

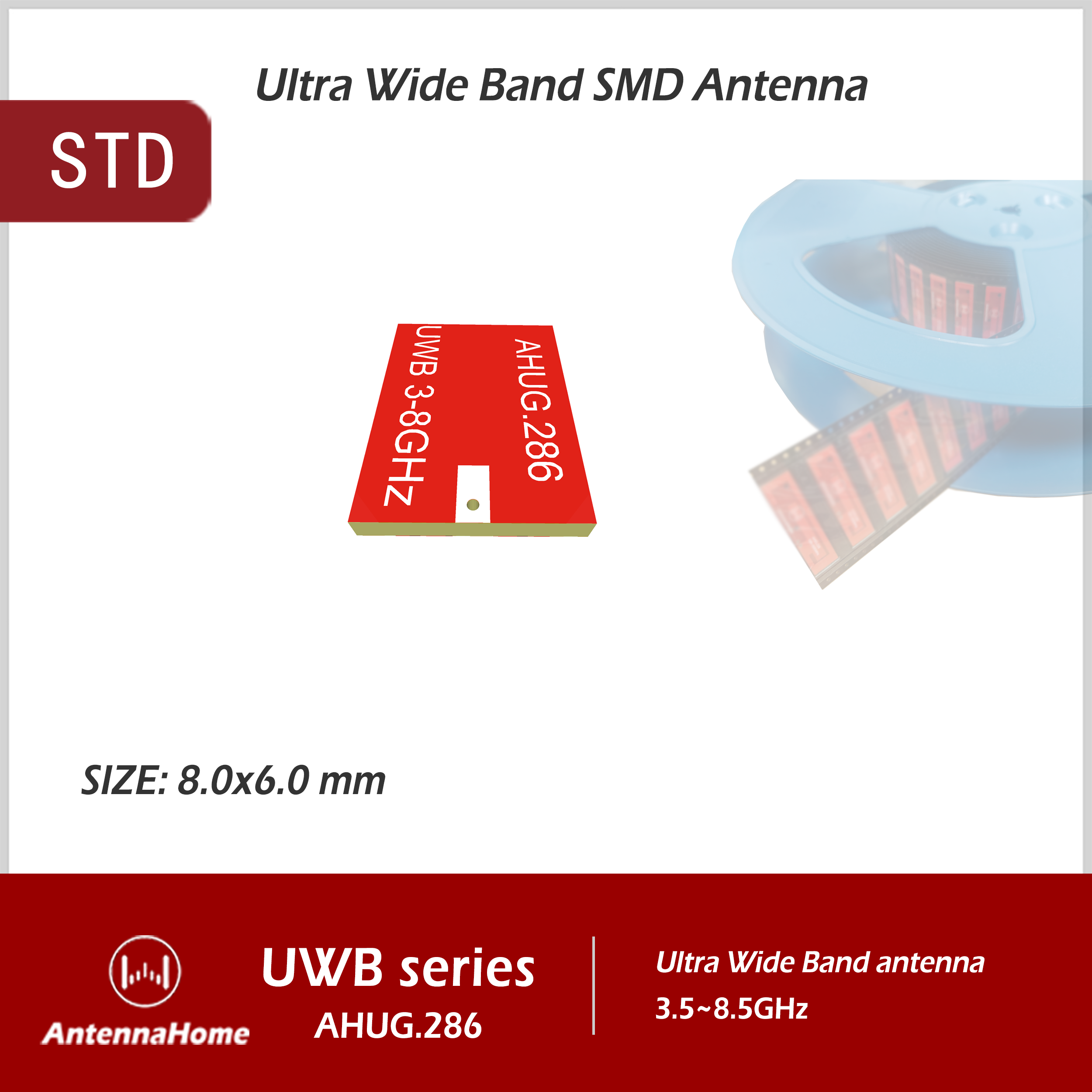

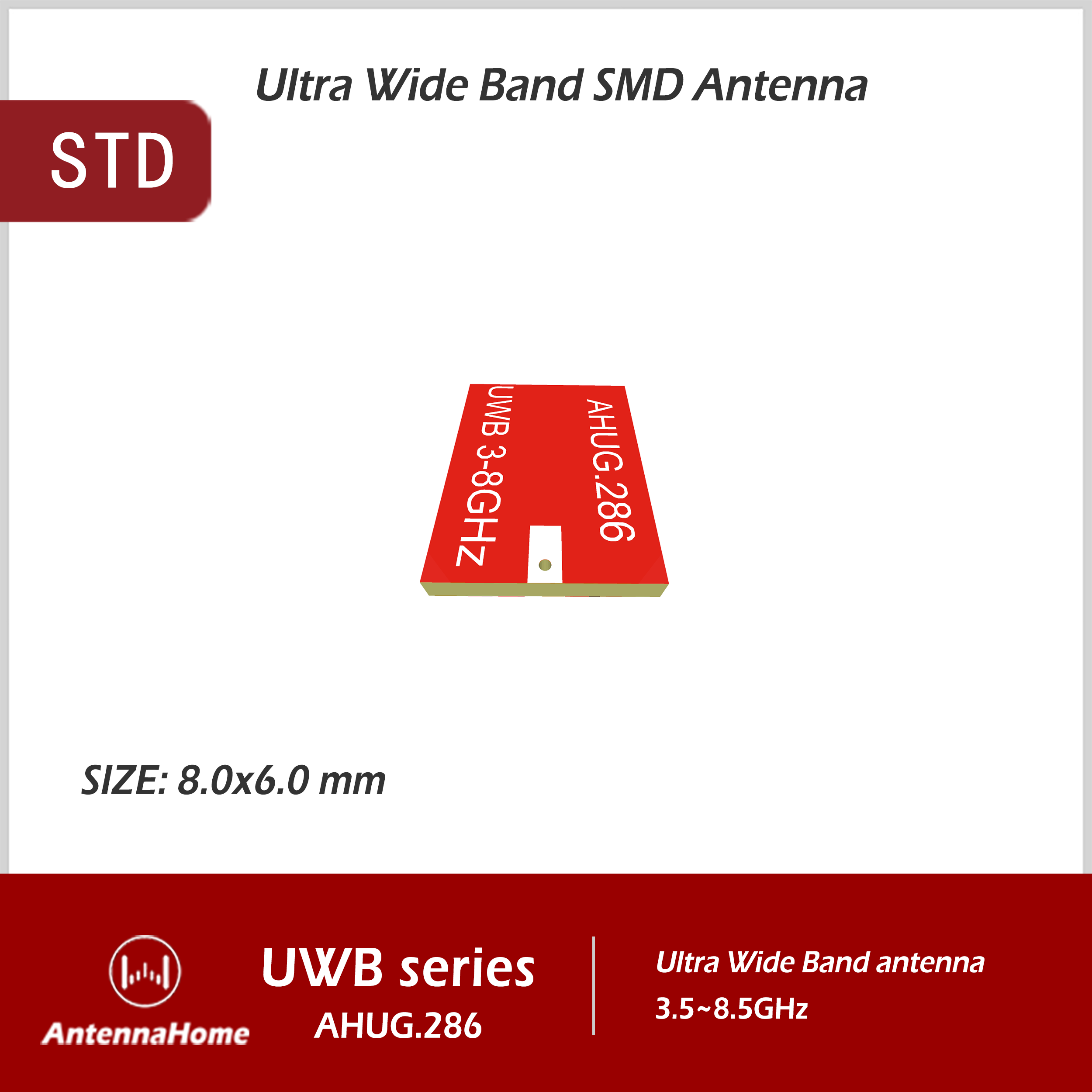

【 UWB Antenna 】

Support PDOA/TDOA Localization Systems

Match to Decawave, DW1000/DW3000

Offer antenna design sevice to UWB Device and Tag.

【 Download 】

Datasheet : http://docs.antennahome.com/ant/AHUG.286.pdf
Catalogue : http://docs.antennahome.com/ant/catalogue.pdf

【 Features 】

IoT wireless Communication system

Low cost but great performance

-40~85^。C   work temp .

Antenna

- All frequency range antennas from 300MHz to 6GHz ;
- Covered ISM band ,315M/433M/470/868M/915M/2.4G;WIFI/BT/ZIGBEE,Z-wave ; 2G-GSM/GPRS/3G--WCDMA/4G-LTE/5G;  NB-IoT/Cat.1; LoRa; UWB ;RFID-915M/2.4G;GNSS/GPS/BD;
- Internal antenna ,chip antenna,spring antenna ,metal antenna ; pcb+cable ,fpc+cabel ;
- External antenna ,Rubber antenna ,Metal antenna,Magnetic antenna ,On-box antenna ,Directly antenna ;fiberglass antenna ;

RF Cable Assy

- All kinds cable assembly with connector and cable
Connector : SMA/SMB/MCX/MMCX,BNC/TNC/N-TYPE,Fakra,U.FL/IPEX/IPX,
Cable : RG113/RG-174/RG178/RG316;

RF connector

- SMA/SMB/MCX/MMCX,BNC/TNC/N-TYPE/F-TYPE,Fakra,U.FL/IPEX/IPX
