Antenna KIT for develop engineers -ANTHOME 808


ANTHOME 808

- 300M~6GHz IoT Antennas KIT

- 27 Kinds Antenna In One Box

- Easy For Engineer To Build Wireless



Product Information

Model Name :  ANTHOME 808

Size : 225 x 185 x 60 mm

G. W: 445g/pcs

Carton: 47x39x12CM, G.W=10KG  ( 20PCS )

Notice:  Invalid if label broken

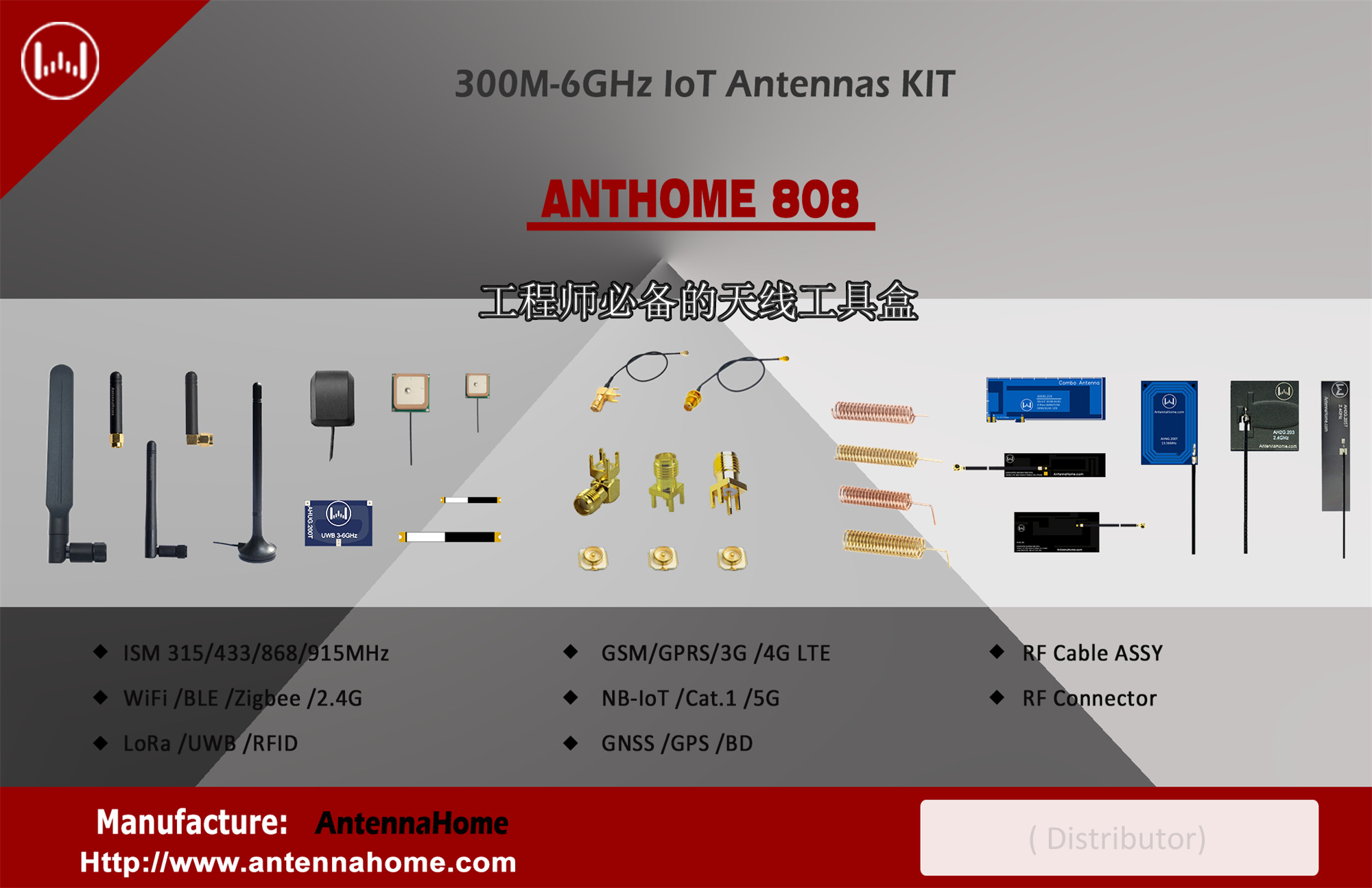

Product Pictures












Products List:





序号
/ No.

类别
/ Type


/ PN

频率
/ Frequency

产品描述
/ Product Description

规格书下载
/ Datasheet Download

1

Spring

AH1G.301

433MHz

Spring DIP,433M antenna

http://docs.antennahome.com/ant/AH1G.301.pdf

2

AH1G.302

868/915M ,
900/1800MHz

Spring DIP,868M/915M,GSM900/1800M antenna

http://docs.antennahome.com/ant/AH1G.302.pdf

3

AH2G.304

2.4GHz

Spring DIP,2.4G antenna

http://docs.antennahome.com/ant/AH2G.304.pdf

4

H50 Rubber

AH1G.101

433MHz

H50 Rubber SMA-J ,433M antenna

http://docs.antennahome.com/ant/AH1G.101.pdf

5

AH1G.102

868/915MHz,
2G/3G

H50 Rubber SMA-J ,868M/915M,GSM900/1800M  antenna

http://docs.antennahome.com/ant/AH1G.102.pdf

6

AH2G.104

2.4GHz

H50 Rubber SMA-J ,2.4G

http://docs.antennahome.com/ant/AH2G.104.pdf

7

H108 Rubber

AH2G.101

2.4GHz

H108 Rubber SMA-J ,2.4G

http://docs.antennahome.com/ant/AH2G.101.pdf

8

AH2G.102

5.8GHz

H108 Rubber SMA-J ,5.8G

http://docs.antennahome.com/ant/AH2G.102.pdf

9

AH3G.101

824~2170MHz,
2G/3G

H108 Rubber SMA-J ,2G/3G

http://docs.antennahome.com/ant/AH3G.101.pdf

10

HB180 Rubber

AH3G.102

3G/4G/5G
NB-IoT /CAT.1

HB180 Rubber SMA-J ,3G/4G/5G

http://docs.antennahome.com/ant/AH3G.102.pdf

11

PCB + Cable
Internal Ant

AH1G.300T

433M-915MHz

433M-915MHz PCB ANT

http://docs.antennahome.com/ant/AH1G.300T.pdf

12

AH2G.205T

2.4/5.8GHz

2.4/5.8GHz PCB ANT

http://docs.antennahome.com/ant/AH2G.205T.pdf

13

AH3G.201T

824~2170MHz,
2G/3G

824-2710MHz PCB ANT

http://docs.antennahome.com/ant/AH3G.201T.pdf

14

AHNG.200T

13.56MHz

P3020 13.56MHz NFC/RFID  ANT

http://docs.antennahome.com/ant/AHNG.200T.pdf

15

FPC + Cable
Internal Ant

AH3G.204

3G/4G/5G

F6330 1.13 Cable IPX,3G/4G/5G ANT

http://docs.antennahome.com/ant/AH3G.204.pdf

16

CHIP SMD
OnBoard ANT

AH2G.302

2.4GHz

K0801 CHIP SMD, 2.4G Antenna

http://docs.antennahome.com/ant/AH2G.302.pdf

17

AH3G.303

2G/3G/4G

K6015 CHIP SMD, 2G/3G/4G Antenna

http://docs.antennahome.com/ant/AH3G.303.pdf

18

AHUG.200T

3.5~6.5GHz

P1410 3.5~6.5GHz OnBoard UWB ANT

http://docs.antennahome.com/ant/AHUG.200T.pdf

19

GPS BOX

AHGG.101

GPS + BD

Q48x38 Box GPS SMA-J , L2000 ,GPS/BD Antenna

http://docs.antennahome.com/ant/AHGG.101.pdf

20

GPS Internal

AHGG.202

GPS + BD

Q25x25 Internal GPS , L120,  GPS/BD Antenna

http://docs.antennahome.com/ant/AHGG.202.pdf

21

RF Cable ASSY 1#

AHCG.101

0~6 GHz

L120 1.13cable SMA-IPX,DIP

http://docs.antennahome.com/ant/AHCG.101.pdf

22

RF Cable ASSY 2#

AHCG.102

0~6 GHz

L120 1.13cable SMA/B-IPX ,DIP

http://docs.antennahome.com/ant/AHCG.102.pdf

23

RF Cable ASSY 3#

AHCG.103

0~6 GHz

L100 1.13cable IPX-IPX

http://docs.antennahome.com/ant/AHCG.103.pdf

24

RF Connector SMA 1#

AHCG.201

0~6 GHz

SMA-K Q4,DIP

http://docs.antennahome.com/ant/AHCG.201.pdf

25

RF Connector SMA 2#

AHCG.202

0~6 GHz

SMA-K Bended Q4 ,DIP

http://docs.antennahome.com/ant/AHCG.202.pdf

26

RF Connector SMA 3#

AHCG.203

0~6 GHz

SMA-K T1.6,DIP

http://docs.antennahome.com/ant/AHCG.203.pdf

27

RF Connector IPX G1

AHCG.204

0~6 GHz

IPX Mounting G1 ,SMD RF connector

http://docs.antennahome.com/ant/AHCG.204.pdf

















Technical Support:

Pls contact if any issue happen in your project action.

E-mail: cs@antennahome.com

LinkedIn:  AntennaHome



---
