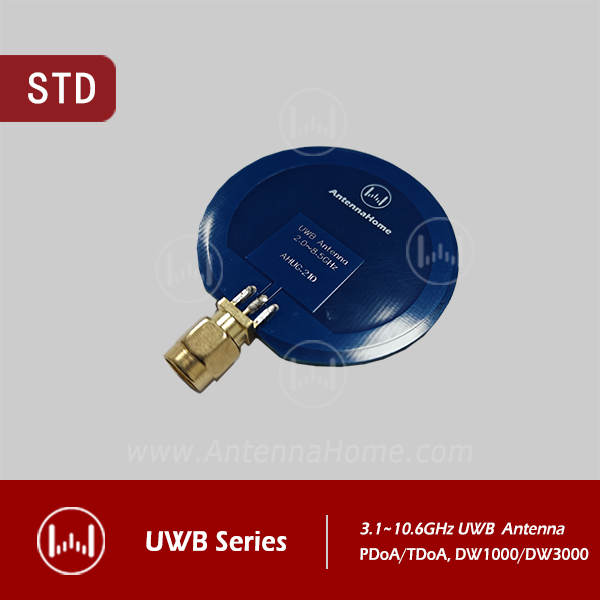

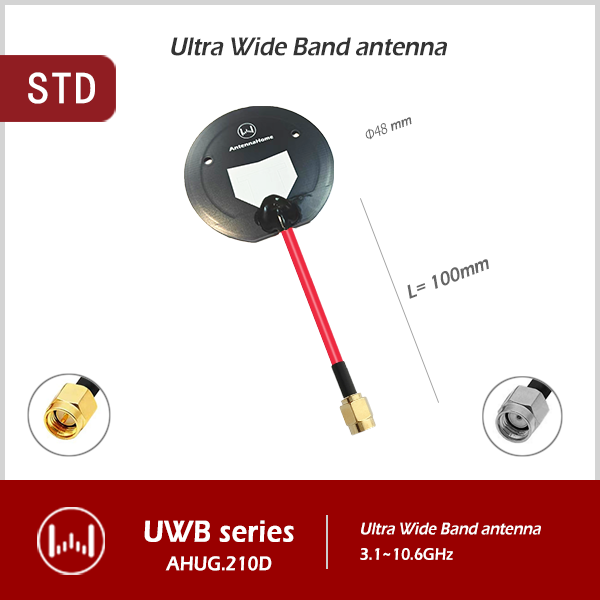

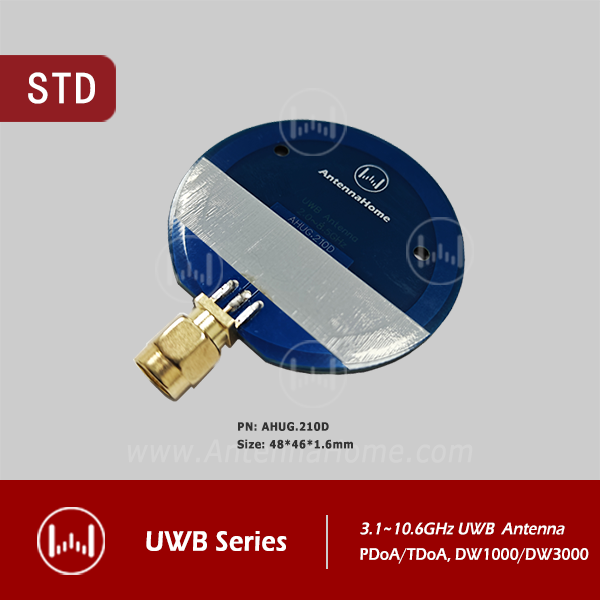

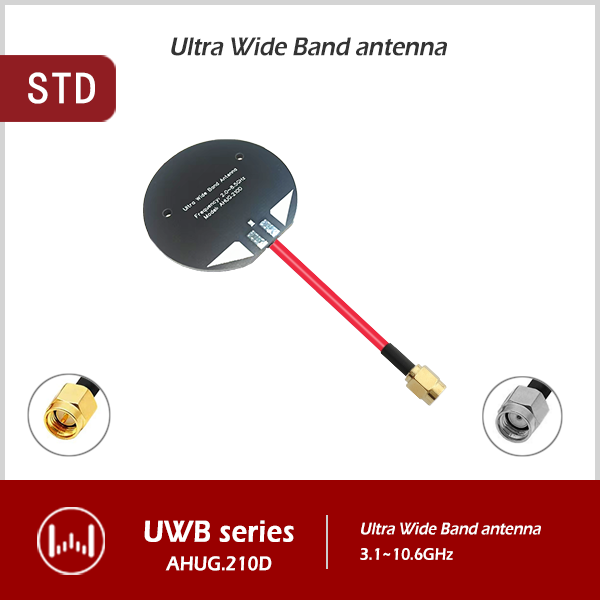

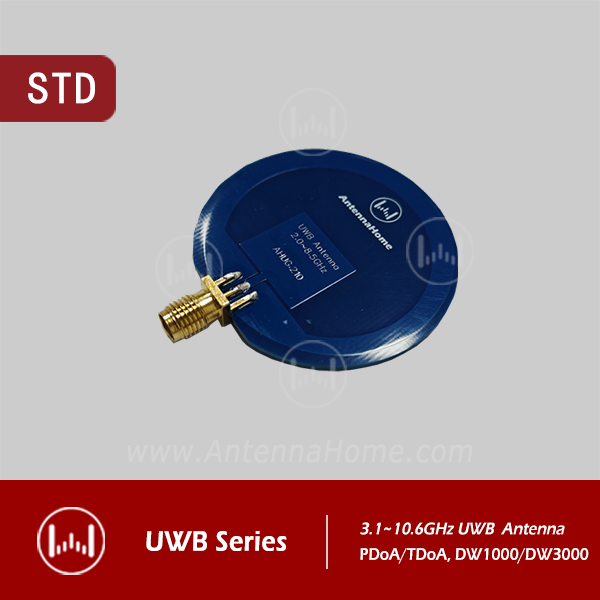

UWB L100 SMA antenna, PDOA, TDOA, Decawave, DW1000, DW3000 AHUG.210D L100 (PN AHUG.210D L100) is an antenna operating at 3.1GHz–10.6GHz with SMA connector for UWB ranging and location systems. The key ordering parameters are listed below. Samples, custom cable lengths and OEM branding are available on request.
Key Specifications
Key ordering specifications
| Property | Specification |
| Part Number | AHUG.210D L100 |
|---|
| Frequency | 3.1~10.6GHz |
|---|
| Weight | 10 g/pcs |
|---|
| Package | PE bag |
|---|
| Category | LoRa /UWB /RFID 915M Antenna |
Full electrical and mechanical datasheet on request — ask our engineers.
Frequently Asked Questions
What frequency range does AHUG.210D L100 cover?
AHUG.210D L100 covers 3.1~10.6GHz. If your application needs a band outside this range, we can retune the matching network for your target frequency.
Which connector does AHUG.210D L100 use?
AHUG.210D L100 is supplied with SMA connector. Other connector types and custom cable lengths are available on request.
How is AHUG.210D L100 packed and shipped?
For AHUG.210D L100, unit weight is 10 g/pcs and standard packaging is PE bag. Bulk packing and custom labelling are available for volume orders.
What is the minimum order quantity and lead time?
Standard models ship in 7–15 working days after order confirmation; samples of in-stock models can ship within 3 days. MOQ depends on the model — contact us for the exact figure for your part number.
Can AntennaHome customize an antenna for my device?
Yes. We provide customized design including frequency tuning, connector and cable length, housing and mounting method. Send us your enclosure drawing, available ground plane size and target bands, and our RF engineers will propose a design.
What certifications and test reports are available?
Products are RoHS and REACH compliant. We operate an in-house 3D anechoic chamber and can provide VSWR, gain and radiation pattern test reports for the specific part number you order.
