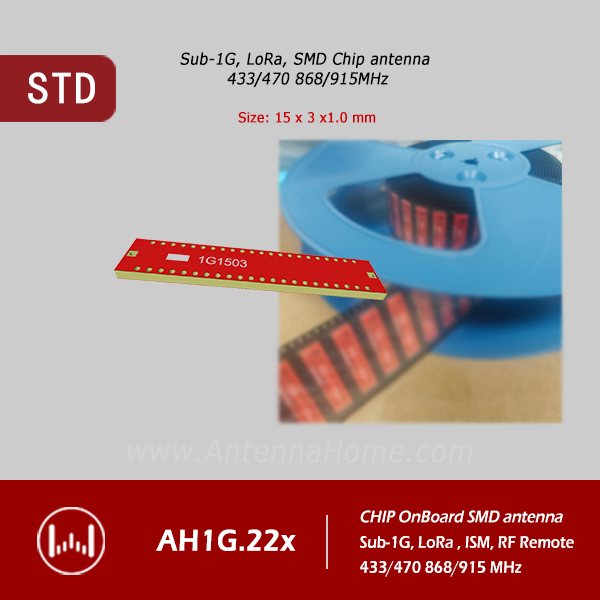

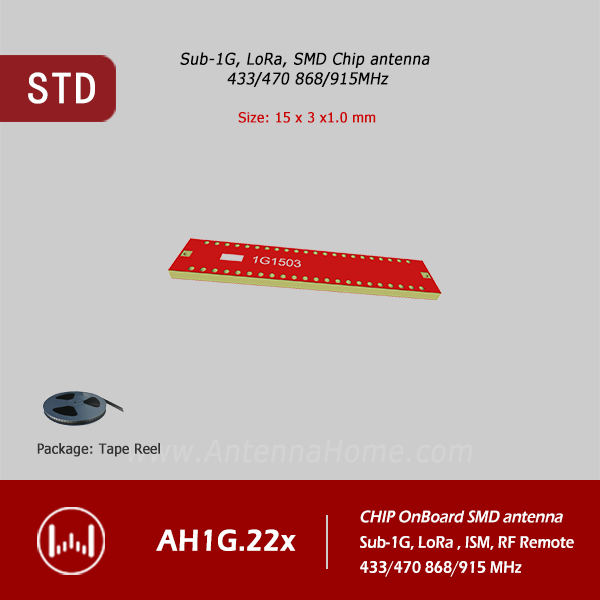

LoRa/LoRaWAN, 433/470 868/915MHz, SMD, CHIP Antenna AH1G.225 (PN AH1G.225) is a smd chip antenna operating at 915MHz for LoRa and LPWAN nodes. The specifications below are taken from its datasheet. Samples, custom cable lengths and OEM branding are available on request.
| Property | Specification |
|---|---|
| Frequency | 315/433/470/868/915MHz |
| Impedance | 50Ω |
| VSWR | ≤2.5 |
| Gain | 2.0 dBi Typical |
| Polarization | Vertical / Omni |
| Property | Specification |
|---|---|
| Conn&Cable | / |
| Material&Color | Copper/Red |
| Mounting | SMD |

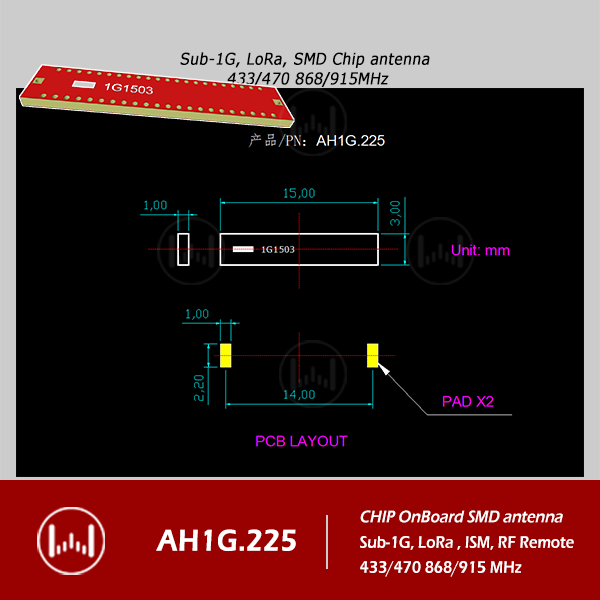

| Size | L15.0 xW3.0 xT1.0 mm |
| Weight | 0.5 g/pcs; 3000pcs/Reel |
| Operate Temp | -40 ~ +85 ℃ |
