GPS /BD /GLONASS GNSS Antenna

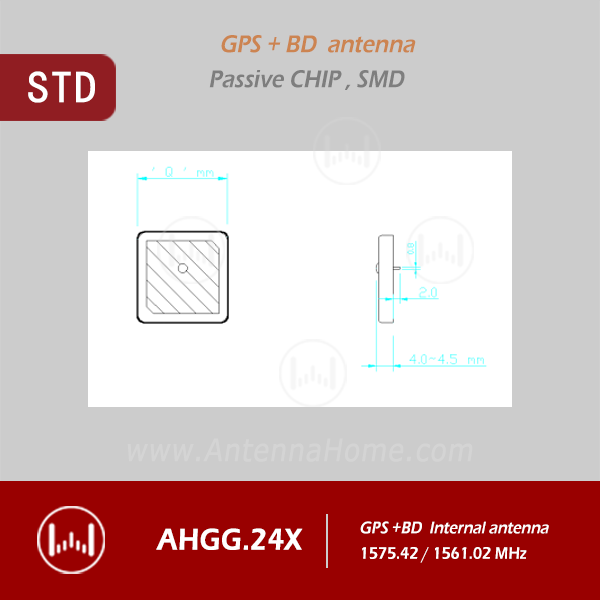

GPS/BD, SMD, Chip Passive Antenna, AHGG.241

  • 料号/PN：AHGG.24X
  • 频率/Frequency：1575.42/1561 MHz
  • 重量/Weight：6 g/pcs
  • 包装/Package：PE bag
  • INQUIRY

GPS/BD, SMD, Chip Passive Antenna, AHGG.241 (PN AHGG.24X) is a smd chip antenna operating at 1.561GHz for GNSS positioning and RTK receivers. The specifications below are taken from its datasheet. Samples, custom cable lengths and OEM branding are available on request.

Key Specifications

Electrical Properties

Electrical Properties
PropertySpecification
FrequencyGPS/1575.42 MHz、BD/1561.02MHz、
Impedance50Ω
VSWR≤2.0
Gain3~5 dB
PolarizationRHCP

Mechanical Properties

Mechanical Properties
PropertySpecification
Conn&Cable/
Material&ColorCeramic
MountingDIP
SizeQ x Q x 4.0 mm (Q=25,18,15,12)
Weight5 g/pcs
Operate Temp-40 ~ +85 ℃

Download

DataSheet: https://docs.antennahome.com/ant/AHGG.24X.pdf

Catalogue: https://docs.antennahome.com/ant/catalogue.pdf

Frequently Asked Questions

What frequency range does AHGG.24X cover?
AHGG.24X covers 1575.42/1561 MHz. If your application needs a band outside this range, we can retune the matching network for your target frequency.
How is AHGG.24X packed and shipped?
For AHGG.24X, unit weight is 6 g/pcs and standard packaging is PE bag. Bulk packing and custom labelling are available for volume orders.
What is the minimum order quantity and lead time?
Standard models ship in 7–15 working days after order confirmation; samples of in-stock models can ship within 3 days. MOQ depends on the model — contact us for the exact figure for your part number.
Can AntennaHome customize an antenna for my device?
Yes. We provide customized design including frequency tuning, connector and cable length, housing and mounting method. Send us your enclosure drawing, available ground plane size and target bands, and our RF engineers will propose a design.
What certifications and test reports are available?
Products are RoHS and REACH compliant. We operate an in-house 3D anechoic chamber and can provide VSWR, gain and radiation pattern test reports for the specific part number you order.
