GPS /BD /GLONASS GNSS Antenna

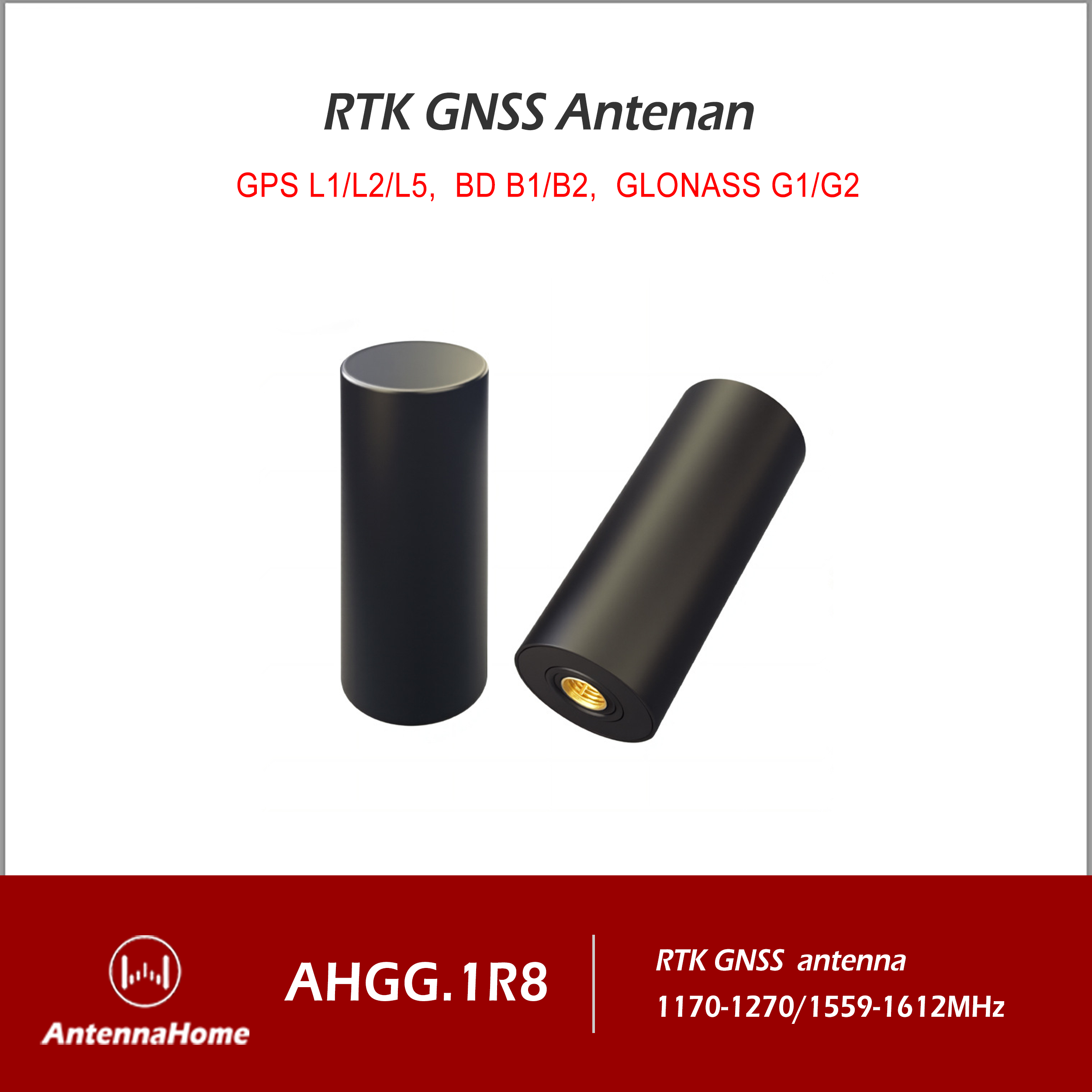

RTK GNSS GPS/BD/GLONASS Antenna

料号/PN：AHGG.1R8
频率/Frequency：1170-1270/1559-1612MHz
重量/Weight：16 g/pcs
包装/Package：PE bag
Product description:
INQUIRY

频段/Frequency：
GPS L1/L2
GLONASS L1/L2
BDS B1/B1C/B2I/B2b/B3I
GALILEO E1/E5b

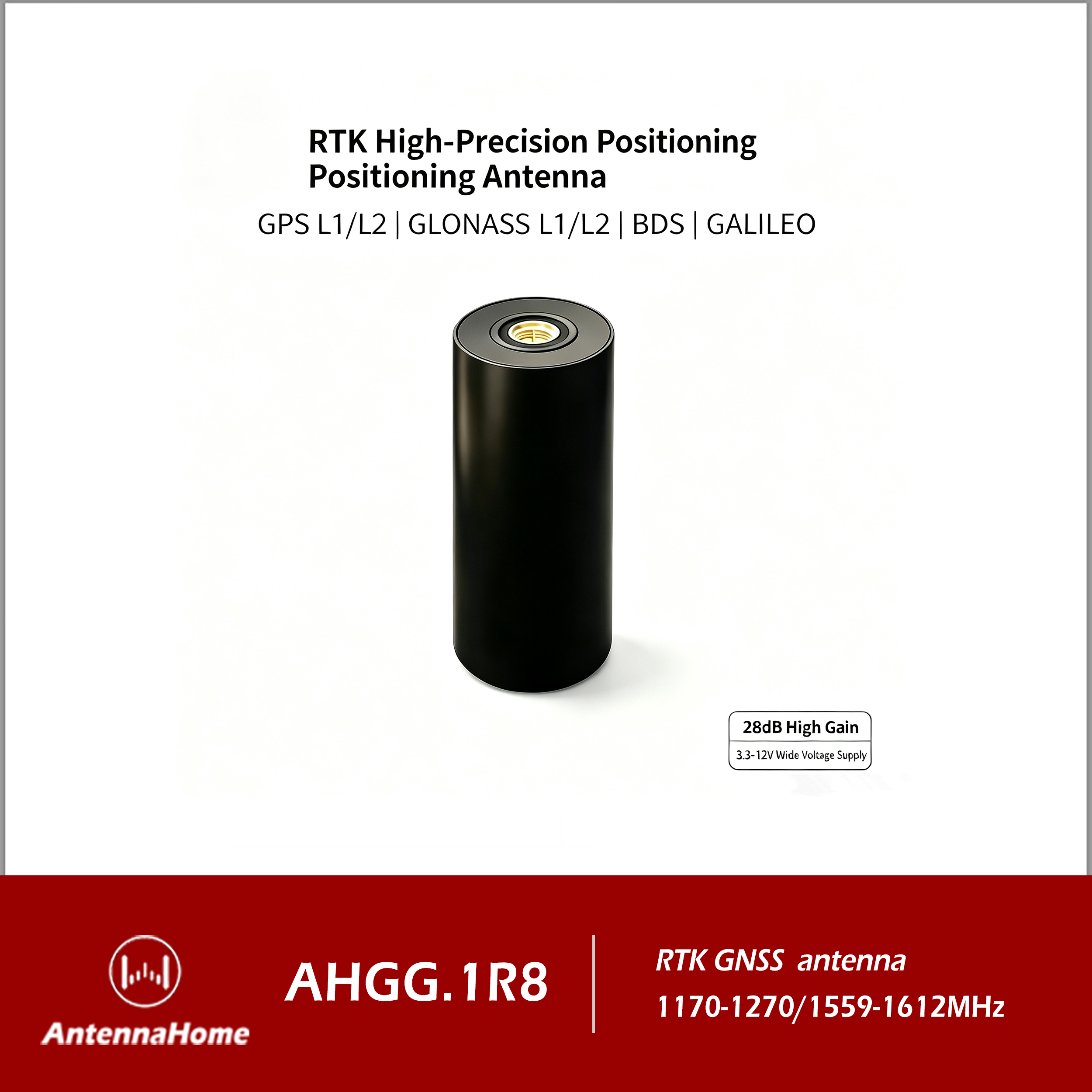

LNA增益 28±2dB
增益 1.5 dB
输出驻波比 ≤1.5:1 (typ. 1.8:1 max)
端口阻抗 50ohm
带内平坦度 ±2.0dB
供电电压 3.3-12.0V
工作电流 ≤45mA
接口 SMA-J
尺寸 Φ27*35.6mm
重量 16g

【 Download 】

Catalogue : http://docs.antennahome.com/ant/catalogue.pdf

【 Features 】

300MHz~ 6GHz wireless system

-40~85^。C work temp .

【 FAQ 】

Q: Are your company a original factory ?

A: Yes,we are a 12 engineers team with 80 workers manufacturer .

Q: What's the delivery time?
A: 2-3 working days for the sample, .
7-10 working days for 2~5K pcs ;
10~15 working days for 5~10K pcs + ;

Q: Is there Quality Management System certifications of your manufacture?
A: Sure ,it's neccsarry ; such as ISO9001 ,ISO14001 ;

Q: Can I get samples advance?
A: Sure, samples is available and free.

Q: Where can i get technical support ?
A: Yes, we open all datasheets on internet . you also can send your issues to us by email .

Q: Could i use my own LOGO or design on goods?
A: Yes, customized logo and design on mass production are available.

Q: What's the payment term?
A:T/T, Paypal, western union etc.

Q:May I visit your company?
A: Sure, welcome any time.
