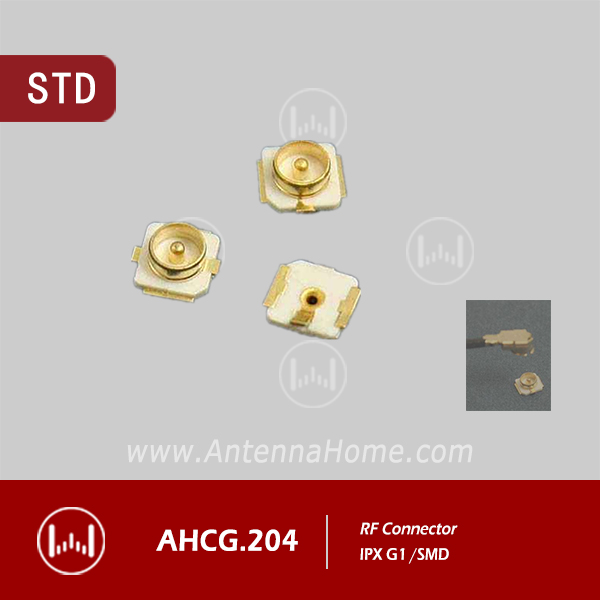

IPX UFL Mounting G1 ,SMD RF connector, AHCG.204

  • 料号/PN：AHCG.204
  • 频率/Frequency：0~6GHz
  • 重量/Weight：1g/pcs
  • 包装/Package：PP bag
  • INQUIRY

IPX UFL Mounting G1 ,SMD RF connector, AHCG.204 (PN AHCG.204) is a smd chip antenna operating at 0~6GHz with IPX/U.FL connector for RF Connector /SMA /SMB /IPX applications. The specifications below are taken from its datasheet. Samples, custom cable lengths and OEM branding are available on request.

Key Specifications

Electrical Properties

Electrical Properties
PropertySpecification
FrequencyDC~6000 MHz
Impedance50Ω
VSWR≤1.3
Insertion Loss0.15 dB
Polarization/

Mechanical Properties

Mechanical Properties
PropertySpecification
Conn&CableIPX G1
Material&ColorCopper
MountingSMD

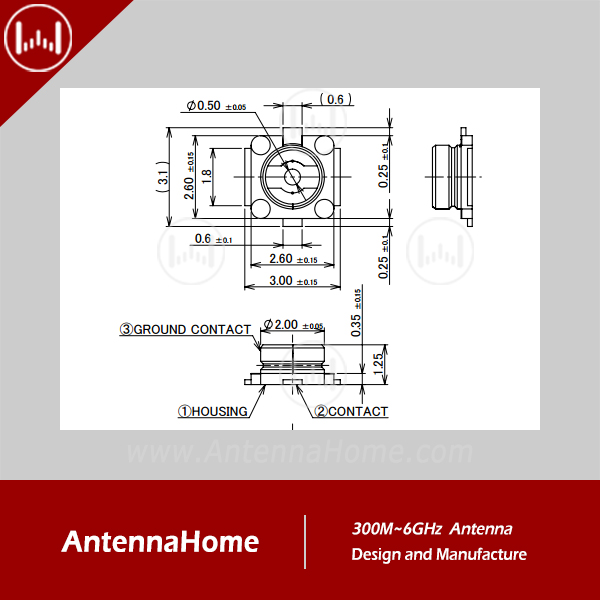

SizeQ2.6 x 1.25 mm
Weight0.02 g/pcs
Operate Temp-40 ~ +85 ℃

Download

DataSheet: https://docs.antennahome.com/ant/AHCG.204.pdf

Catalogue: https://docs.antennahome.com/ant/catalogue.pdf

Frequently Asked Questions

What frequency range does AHCG.204 cover?
AHCG.204 covers 0~6GHz. If your application needs a band outside this range, we can retune the matching network for your target frequency.
Which connector does AHCG.204 use?
AHCG.204 is supplied with IPX/U.FL connector. Other connector types and custom cable lengths are available on request.
How is AHCG.204 packed and shipped?
For AHCG.204, unit weight is 1g/pcs and standard packaging is PP bag. Bulk packing and custom labelling are available for volume orders.
What is the minimum order quantity and lead time?
Standard models ship in 7–15 working days after order confirmation; samples of in-stock models can ship within 3 days. MOQ depends on the model — contact us for the exact figure for your part number.
Can AntennaHome customize an antenna for my device?
Yes. We provide customized design including frequency tuning, connector and cable length, housing and mounting method. Send us your enclosure drawing, available ground plane size and target bands, and our RF engineers will propose a design.
What certifications and test reports are available?
Products are RoHS and REACH compliant. We operate an in-house 3D anechoic chamber and can provide VSWR, gain and radiation pattern test reports for the specific part number you order.
