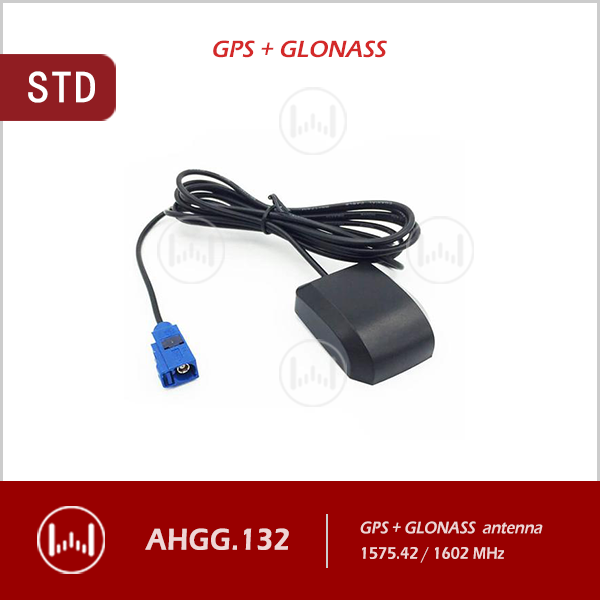

GPS/GLONASS, SMA-J, External Active Antenna, AHGG.132

  • 料号/PN：AHGG.132
  • 频率/Frequency：1575.42/1602 MHz
  • 重量/Weight：50 g/pcs
  • 包装/Package：PE bag
  • INQUIRY

GPS/GLONASS, SMA-J, External Active Antenna, AHGG.132 (PN AHGG.132) is an antenna operating at 1.602GHz with SMA connector for GNSS positioning and RTK receivers. The specifications below are taken from its datasheet. Samples, custom cable lengths and OEM branding are available on request.

Key Specifications

Electrical Properties

Electrical Properties
PropertySpecification
FrequencyGPS/1575.42 MHz、GLONASS/1602 MHz
Impedance50Ω
VSWR≤2.0
Gain28±2dB @3~5V
PolarizationRHCP

Mechanical Properties

Mechanical Properties
PropertySpecification
Conn&CableSMA-J ,RG-174 L=2M or Option ,
Material&ColorCopper / ABS
MountingSMA connector
SizeQ48x38x17 mm
Weight50 g/pcs
Operate Temp-40 ~ +85 ℃

Download

DataSheet: https://docs.antennahome.com/ant/AHGG.132.pdf

Catalogue: https://docs.antennahome.com/ant/catalogue.pdf

Frequently Asked Questions

What frequency range does AHGG.132 cover?
AHGG.132 covers 1575.42/1602 MHz. If your application needs a band outside this range, we can retune the matching network for your target frequency.
Which connector does AHGG.132 use?
AHGG.132 is supplied with SMA connector. Other connector types and custom cable lengths are available on request.
How is AHGG.132 packed and shipped?
For AHGG.132, unit weight is 50 g/pcs and standard packaging is PE bag. Bulk packing and custom labelling are available for volume orders.
What is the minimum order quantity and lead time?
Standard models ship in 7–15 working days after order confirmation; samples of in-stock models can ship within 3 days. MOQ depends on the model — contact us for the exact figure for your part number.
Can AntennaHome customize an antenna for my device?
Yes. We provide customized design including frequency tuning, connector and cable length, housing and mounting method. Send us your enclosure drawing, available ground plane size and target bands, and our RF engineers will propose a design.
What certifications and test reports are available?
Products are RoHS and REACH compliant. We operate an in-house 3D anechoic chamber and can provide VSWR, gain and radiation pattern test reports for the specific part number you order.
