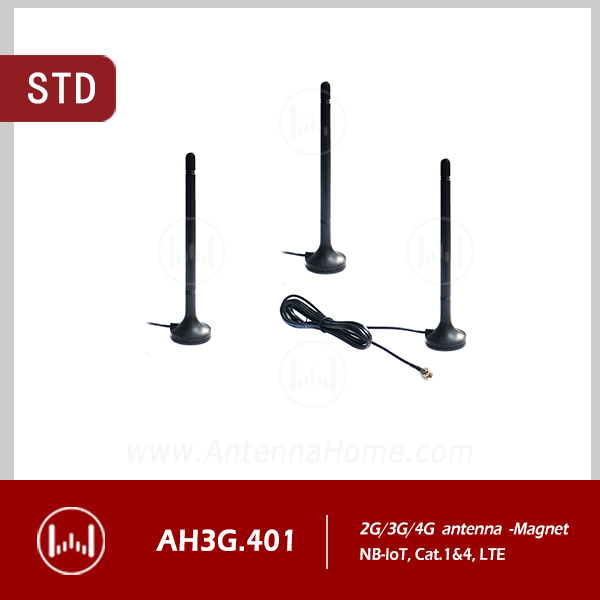

2G/3G/4G H175 Rubber Magnet Antenna WaterProof, AH3G.401

  • 料号/PN：AH3G.401
  • 频率/Frequency：800~2170MHz
  • 重量/Weight：25g/pcs
  • 包装/Package：PE bag
  • INQUIRY

2G/3G/4G H175 Rubber Magnet Antenna WaterProof, AH3G.401 (PN AH3G.401) is a rubber whip antenna operating at 800MHz–2.17GHz for 4G LTE routers and gateways. The specifications below are taken from its datasheet. Samples, custom cable lengths and OEM branding are available on request.

Key Specifications

Electrical Properties

Electrical Properties
PropertySpecification
Frequency800~2170 MHz, 2G/3G/4G,NB-IoT,CAT.1&4
Impedance50Ω
VSWR≤2.0
Gain3.0 dBi
PolarizationVertical / Omni

Mechanical Properties

Mechanical Properties
PropertySpecification
Conn&CableSMA-J & RG-174 Cable
Material&ColorCopper/Black
MountingMagnetic

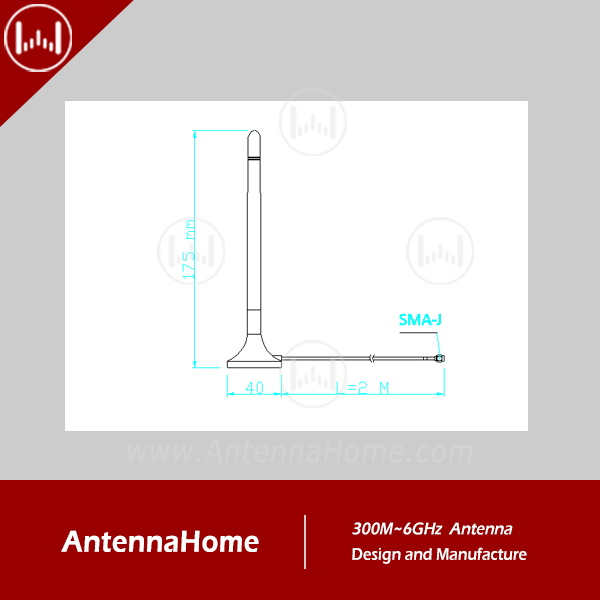

Size¢40×H175 mm
Weight25.0 g/pcs
Operate Temp-40 ~ +85 ℃

Download

DataSheet: https://docs.antennahome.com/ant/AH3G.401.pdf

Catalogue: https://docs.antennahome.com/ant/catalogue.pdf

Frequently Asked Questions

What frequency range does AH3G.401 cover?
AH3G.401 covers 800~2170MHz. If your application needs a band outside this range, we can retune the matching network for your target frequency.
How is AH3G.401 packed and shipped?
For AH3G.401, unit weight is 25g/pcs and standard packaging is PE bag. Bulk packing and custom labelling are available for volume orders.
What is the minimum order quantity and lead time?
Standard models ship in 7–15 working days after order confirmation; samples of in-stock models can ship within 3 days. MOQ depends on the model — contact us for the exact figure for your part number.
Can AntennaHome customize an antenna for my device?
Yes. We provide customized design including frequency tuning, connector and cable length, housing and mounting method. Send us your enclosure drawing, available ground plane size and target bands, and our RF engineers will propose a design.
What certifications and test reports are available?
Products are RoHS and REACH compliant. We operate an in-house 3D anechoic chamber and can provide VSWR, gain and radiation pattern test reports for the specific part number you order.
